My System
Specs:
 |
Intel P4 2.0AGHz Northwood 512K Cache 400MHz FSB |
|
|
Soyo P4S 645DX Motherboard |
|
|
1 512MB Stick of Corsair XMS PC2700 CAS2.0 DDR333 |
|
|
ATI Radeon 8500LE |
|
|
Maxtor 40GB ATA133 7200RPM Quiet Drive (Master on IDE3) |
|
|
Chieftec Dragon Case w/ 420w PSU and 2 Case Fans |
|
|
TDK VeloCD 40x12x48 (Master on IDE2) |
|
|
Lite-On 16x DVD / 48X CD (Master on IDE1) |
|
|
Alps 3.5 Floppy Drive |
|
|
Stock Intel HSF (2800RPM) w/ Artic Silver III |
Pictures will come soon (as soon as I get the rounded cables and clean up the inside a tad)
Front View 1:
Front View 2:
Side View 1:
Side View 2:
Back View:
Benchmarks:
These benchmarks were run with the system shown above. Onboard sound was enabeled. But there were no programs running in the system tray. Windows XP Professional with all upgrades was used, along with the latest ATI drivers for the 8500LE. The 8500LE is an UNderclocked version of the retail ATI Radeon 8500. It is clocked at 250MHz rather than the 275MHZ that the retail 8500 is at. The latencies on the memory were set at:
CAS Latency Setting- 2t
RAS Active Time- 6t
RAS Precharge Time- 3t
RAS to CAS Delay- 3t
ACT to ACT Delay- 2t
Write Recovery Time- 1t
SiSoftware Sandra Benchmarks:
|
|

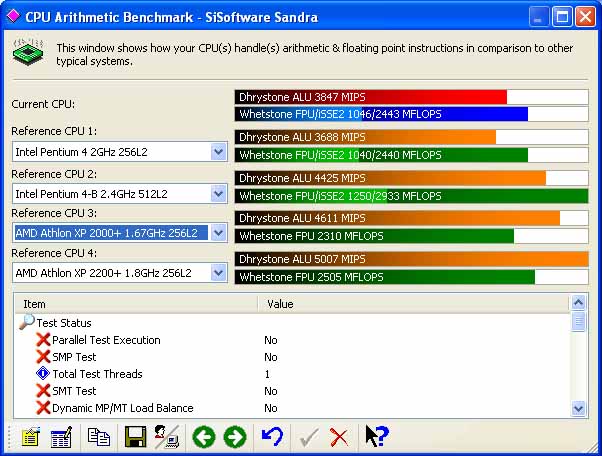

CPU Arithmetic Benchmark: |
|
|

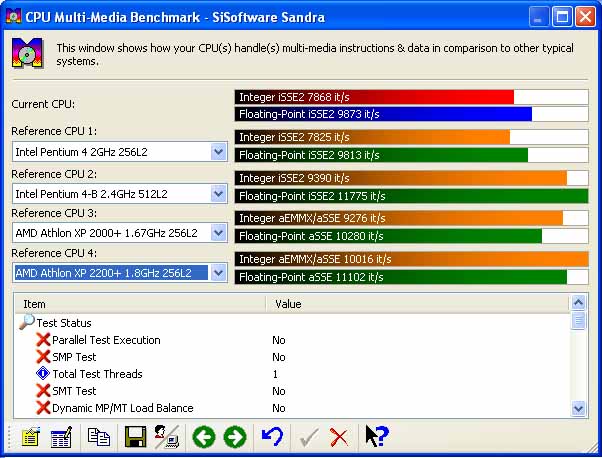

CPU Multimedia Benchmark: |
|
|

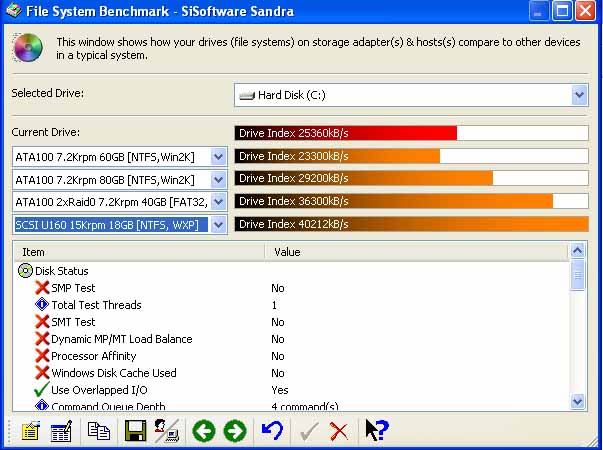

File System Benchmark: |
|
|

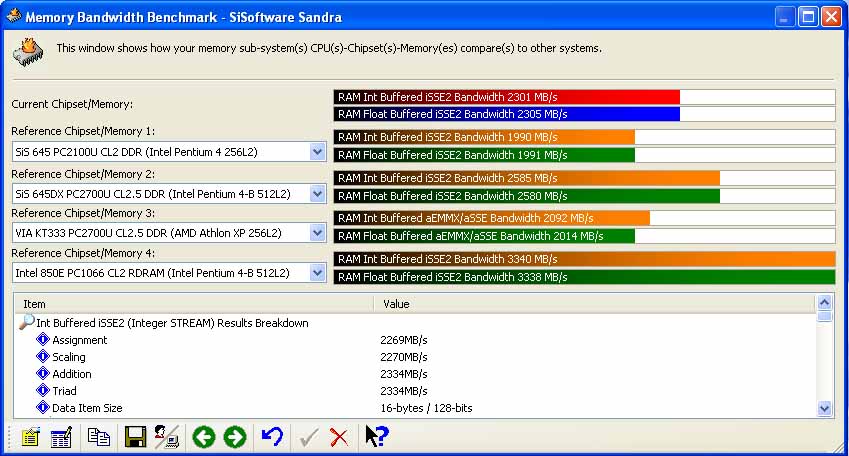

Memory Bandwidth Benchmark: |
The benchmark angered me a tad because I expect much more out of the Corsair memory that I have...well I guess I'll have to see what I can do.
|
|

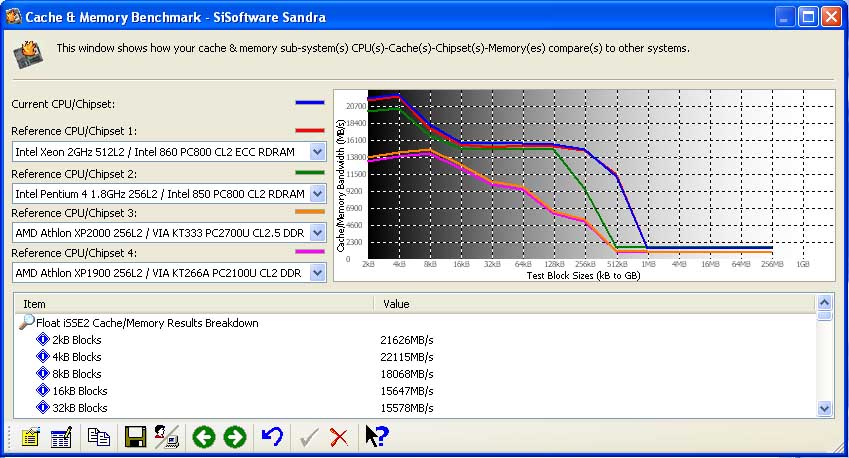

Cache & Memory Benchmark: |
